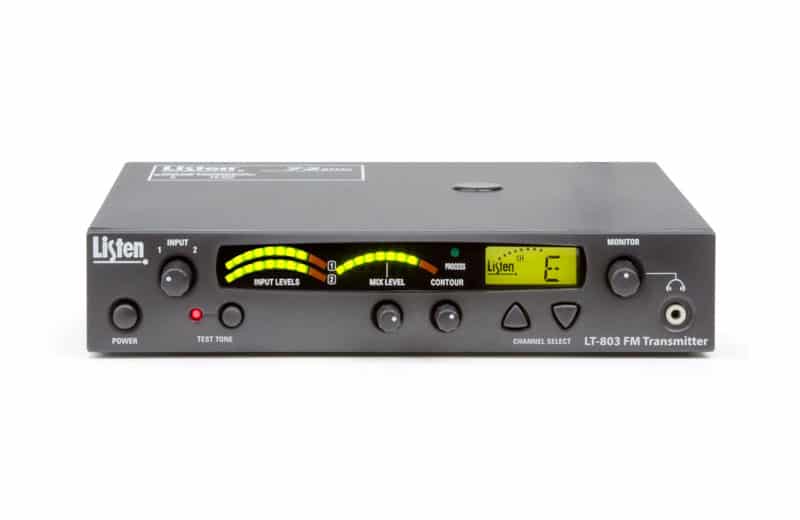

Stationary 3-Channel RF Transmitter (72 MHz)

Item:LT-803-072-01b Price: $400.80B-STOCK

For businesses or venues requiring anywhere from one to three channels of assistive listening audio, the LT-803-072 Stationary 3-Channel RF Transmitter is an excellent choice. Universal inputs allow for the use of nearly any audio source including mixers, micrphones, MP3 players, and more, and our signature Look & Listen (TM) LCD display provides immediate information about channel, lock, and RF power. The LT-803-072 also includes a power supply making it easy to set up and start using right away.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz)
One (1) Power supply
One (1) Quick Reference Card

Highlights

  • Affordable, feature-packed transmitter option for basic assistive listening systems
  • Three-channel design makes it simple to install, manage, and use
  • 100% digital audio transmission for solid, reliable signal
  • Look & Listen LCD display
  • Works with any audio source on the market
  • Backed by Listen Technologies limited lifetime warranty and hassle-free support
  • 30-day, no-obligation demonstration available for your venue
  • Compatible with a wide range of Listen Technologies accessories

Specs

+Audio

Frequency Response50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio62 dB (A-Weighted)
Audio Input 1Rear panel, one (1) Female XLR and 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
Audio Input 2Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
Audio ProcessingCompression can be turned on/off. Slope internally adjustable from 1:1 to 4:1. Default 2:1
ContourCuts and boosts frequencies above 5 kHz
Distortion< 2% total harmonic distortion (THD) at 80% deviation
Audio OutputInput 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
Headphone OutputFront panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm

+Controls

User ControlsFront Panel: Power, Test Tone on/off, Channel up/down, Input Levels, Mix Level, Contour, Monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
Internal AdjustmentsCompression ratio for audio processor
ProgrammingProcess on/off, channel lock

+Indicators

LCDChannel Designation, lock status, RF power level (front panel)
Audio Input Status LEDsIndicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
ProcessingIndicated by a green LED when on (front panel)
Test ToneRed LED illuminates when test tone is enabled
RF PowerIndicated on the LCD (low, mid, high)

+RF

Frequency Range(A) 72.100, (E) 72.900, (H) 75.900
Number of Channels3 wide band
Frequency Accuracy± .005% stability 0 to 50ºC (32 to 122º)
Antenna TypeVarious antennas available
Transmitter Stability50 PPM
Transmission RangeUp to 305 m (1,000 ft.)
Antenna ConnectorBNC
Output Power80,000 uV at 3 m

+Power

Power SupplyIn line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
Power Supply Input100-240 VAC, 50-60 Hz, 0.4 A
Power Supply Output12 VDC, 1.3 A, 15.6 W
Power Supply Connector5.0 mm (0.02 in.) OD, 2.5 mm (0.01 in.) ID, barrel type
ComplianceUL, CE, GS, TÜV, RoHS

+Physical

Width21.5 cm (8.50 in.)
Height4.5 cm (1.75 in.)
Depth23 cm (9.13 in.)
ColorDark Grey with white silk screening
Unit Weight with Power Supply2.0 kg (4.5 lbs.)
Shipping Weight2.7 kg (6.0 lbs.)
Rack MountingOne (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space,optional rack mount (LA-326)
Weight1.2 kg (2.6 lbs.)

+Environmental

Temperature - Operation-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity0 to 95% relative humidity, non condensing

+Compliance

RFFCC Part 15, Part 90, Industry Canada

Accessories

FAQs

+What is the range of the LT-803-072 transmitter?

Line of site up to 305 m (1,000 ft.) with remote antenna.

+Does the LT-803-072 include the rack mount?

No, but an LA-326 Universal Rack Mounting Kit is available for purchase. Antenna options for rack mounting also available.

+Is there a limit to the number of LT-803-072 transmitters I can use in one room?

Yes. The maximum is (3) three.

+Is the LT-803-072 compatible with Listen's other receivers (LR-300-072, LR-400-072, LR-500-072, LR-100-072, and LR-600-072)?

Yes. Remember, the LT-803-072 has only three (3) channels (A, E, H) therefore the receiver will need to be tuned to one of those channels. Also, the SQ (Super Quiet) function must be turned off on the receiver.

+Do I need a transmitter for each audio source?

Each audio source requires a transmitter.

+How many receivers can I have on a system?

As many as you want. The transmitter simply transmits a signal and you can have as many receivers pick that signal up as necessary. It's like a radio station transmitting and the receivers are the radios tuning into the "channel".
